FIN-COUPLINGS

GEL 5000-C

The double hubs, one internal and the other external, make it easy to reach the fastening screws.
A key and screw version is also available.
They are used to connect tachogenerators, encoders, motors, gauges and for any other application where constant rotational movement in the four quadrants is required and where absolute torque rigidity is needed even when shaft coupling is not perfectly lined up.

1Xua KlVwZ2PT8JT2Yz5hJFn2IKEqI8Ji gdf 1752320514

1LryrISIxRO AMWsoS4xA llsFx4rOfmc gdf 1757072024

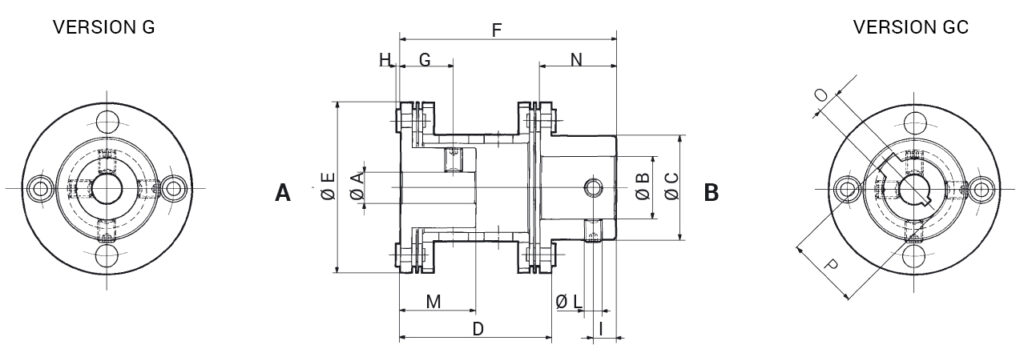

Standard holes
A H7	B H7

C

D

E

F

G

H

I

L

M

N

GEL 5000-C

3 - 7 - 8 - 10 - 11

3 - 5 - 6 - 7 - 8 - 9,52 - 10 - 11 - 14

23

33,6

38

48,1

12

1

5

M4

17

Ø H7 holes	O	p
6	2	7
7	2	8
8	3	9
10	3	11,4
11	4	12,8
12	4	13,1
14	5	16,3

	Nominal torque	Maximum torque	Axial misalignment max	Radial misalignment max	Angular misalignment	Moment of inertia	Maximum speed	Dynamic torsional stiffness x10²	Weight	PDF
Symbol	Tᴺ	Tₛ	ΔWᵃ	ΔWᵣ	ΔWʷ	J	n max	Cʷ ᵈʸᵐ	m
Unit	Nm	Nm	mm.	mm.	rad	Kg m²x10⁻⁶	min⁻¹	Nm/rad	Kg
GEL 5000-C	1,53	2,20	0,8	0,7	0,02618	9,001	45.000	24,815	0,055	PDF
