FIN-COUPLINGS

GEL 3000 R-C

The DIN.AL fin couplings of the GEL 3000 R series have short outer double hubs which make it possible to connect large shafts, overall dimensions being very small. A key and screw version is also available.
They are used to connect tachogenerators, encoders, motors, gauges and for any other application where constant rotational movement in the four quadrants is required and where absolute torque rigidity is needed even when shaft coupling is not perfectly lined up.

1H DShuUXJ SStxAXLwHdeoqzq Jmr1Nz gdf 1752320579

1bsDsz0pf03 u1ZKT5e0vWrxHxKt A8Pf gdf 1757072055

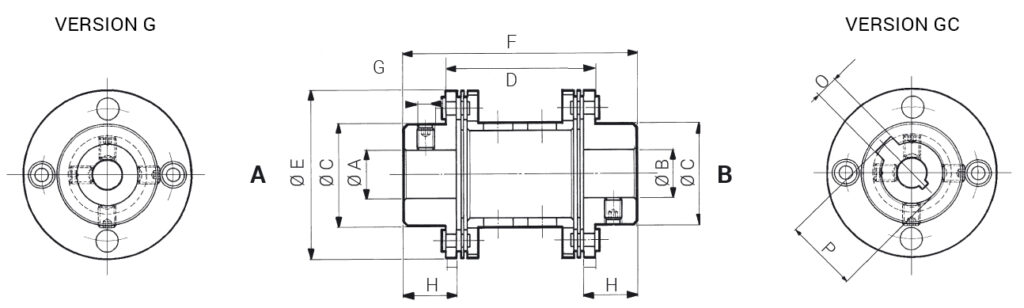

Fori standard
A H7	B H7

C

D

E

F

G

H

I

GEL 3000 R-C

3 - 6 - 7 - 8 - 9,52 - 10 - 11 - 14

23

33,6

38

52

5

11,7

M4

Ø fori H7	O	p
6	2	7
7	2	8
8	3	9
10	3	11,4
11	4	12,8
12	4	13,1
14	5	16,3

	Nominal torque	Maximum torque	Axial misalignment max	Radial misalignment max	Angular misalignment	Moment of inertia	Maximum speed	Dynamic torsional stiffness x10²	Weight	PDF
Simbolo	Tᴺ	Tₛ	ΔWᵃ	ΔWᵣ	ΔWʷ	J	n max	Cʷ ᵈʸᵐ	m
Unità	Nm	Nm	mm.	mm.	rad	Kg m²x10⁻⁶	min⁻¹	Nm/rad	Kg
GEL 3000 R-C	1,53	2,20	0,8	0,7	0,02618	9,549	45.000	24,815	0,058	PDF
