FIN-COUPLINGS

GEL 2000 R-C

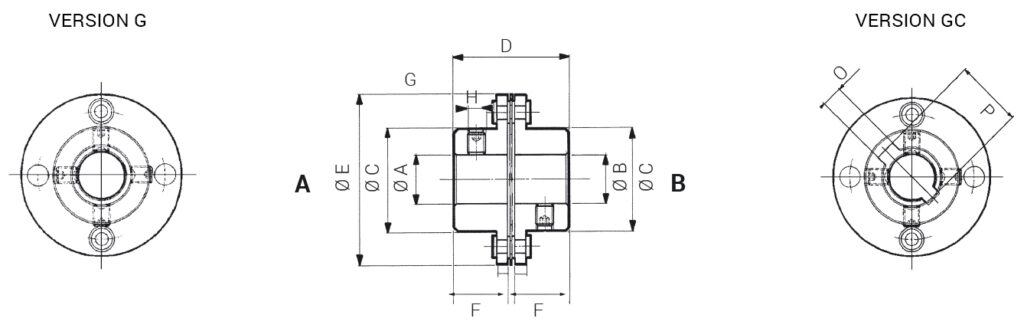

“The direct connection of the two hubs ensures very small overall dimensions. A key and screw version is also available.They are used to connect tachogenerators, encoders, motors, gauges and for any other application where constant rotational movement in the four quadrants is required and where absolute torque rigidity is needed even when shaft coupling is not perfectly lined up.”

Fori standard
A H7	B H7

C

D

E

F

G

H

GEL 2000 R-C

3 - 6 - 7 - 8 - 9,52 - 10 - 11 - 14

23

25,7

38

11,7

5

M4

Ø fori H7	O	p
6	2	7
7	2	8
8	3	9
10	3	11,4
11	4	12,8
12	4	13,1
14	5	16,3

	Nominal torque	Maximum torque	Axial misalignment max	Radial misalignment max	Angular misalignment	Moment of inertia	Maximum speed	Dynamic torsional stiffness x10²	Weight	PDF
Simbolo	Tᴺ	Tₛ	ΔWᵃ	ΔWᵣ	ΔWʷ	J	n max	Cʷ ᵈʸᵐ	m
Unità	Nm	Nm	mm.	mm.	rad	Kg m²x10⁻⁶	min⁻¹	Nm/rad	Kg
GEL 2000 R-C	1,53	2,20	0,4	0,35	0,02618	5,350	45.000	24,815	0,035	PDF
