FIN-COUPLINGS

GEL 100-S

DIN.AL. laminar couplings the “GEL-100-S” series are normally used for coupling tachometer dynamos, encoders, contactors, motors, measuring instruments, and all those applications where it is essential to transmit a constant velocity rotary motion in all four quadrants with absolute torsional rigidity, even when the shafts are not perfectly aligned. The unique construction dynamics with self-centering light alloy fixing rings allows the coupling to be locked without using set screws or keys.
Model registered in Italy, Germany and France.

1FiDnWfMByZnymd8JJaBxs7N3Sv1zsWKb gdf 1752320499

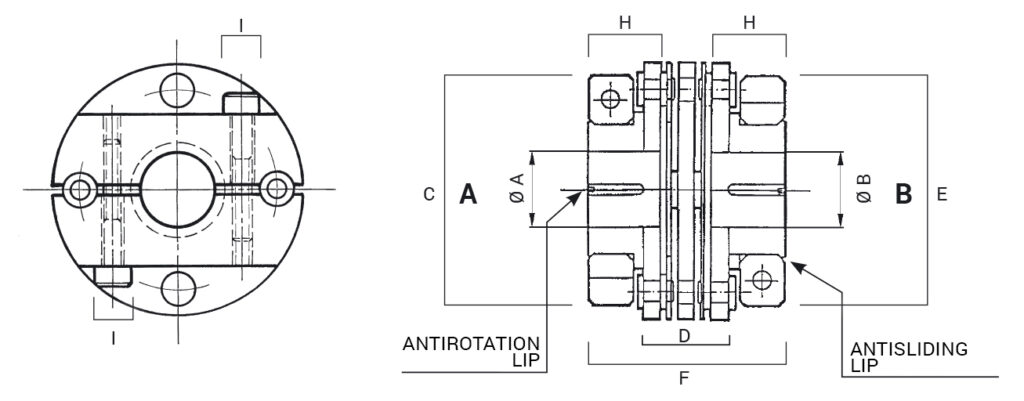

18YrycSGEZyEbvh7sSVSi5U6WOAGURiGQ gdf 1757072016

Fori standard
A H7	B H7

C

D

E

F

H

I

GEL 100-S

5 - 6 - 7 - 8 - 9 - 9,52 - 10 - 11 - 12 - 14 - 15

34

12,5

38

28,5

10,7

M3x16

	Nominal torque	Maximum torque	Axial misalignment max	Radial misalignment max	Angular misalignment	Moment of inertia	Maximum speed	Dynamic torsional stiffness x10²	Weight	PDF
Simbolo	Tᴺ	Tₛ	ΔWᵃ	ΔWᵣ	ΔWʷ	J	n max	Cʷ ᵈʸᵐ	m
Unità	Nm	Nm	mm.	mm.	rad	Kg m²x10⁻⁶	min⁻¹	Nm/rad	Kg
GEL 100-S	1,53	2,20	0,4	0,35	0,02618	5.350	45.000	24,815	0,040	PDF
